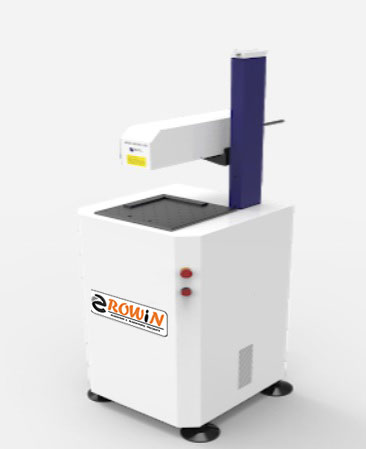

Laser-Marking-Machine

 Laser

 Multimode Pump Diode Fiber Laser

 Laser Power (W)

 20, 30, 50

 Mode of operation

 Pulsed

 Max. Peak Power (KW)

 >7.5

 Operating Temperature

 up to 35° C

 Lens

 F - Theta

 Wave Length (nm)

 1060 +/- 10

 Marking Area (mm)

 180 × 180

 Repeatability (micron)

 ≤ 80

 Beam (Dia.) (micorn)

 30

 Working Area (mm)

 320 × 320 ; 450 × 320 (with table)

 Overall Size(L × B × H)(mm)

 550 × 550 × 620 ; 550 × 550 × 1500 (with table)

 Gross Weight (Kg)

 35 ; 100 (with table)

 Travel (Manual/Motorised) (mm)

 300

 Max. Load (Kg)

 100

 Software

 Mark Pro
