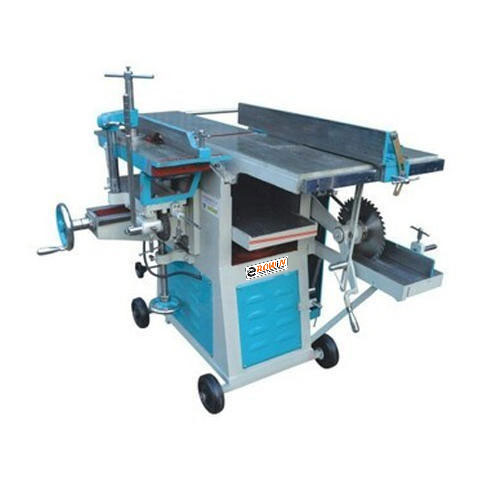

Wood-Planner

Wood Planner

Salient Features:-

  • Adjustable fence,3-knife cutterblock
  • Collateral pivoting grey cast iron tables enables comfortable thicknessing
  • Simply flips from planer position to thicknesser position
  • Superior Feed Mechanism
  • Standard position counter for thicknesser table
  • Optional cast iron hand wheel.

Technical Specification:-

GENERAL SPECIFICATIONS FOR 12” PLANER THICKNESSER MACHINE

SPECIFICATIONS

WPM-300

Power

2HP

Planing Width

300 mm

Max. Planing Depth

3 mm

Thickening Width

307 mm

Max. Thickening Depth

4.5 mm

Max. Thickening Height

225 mm

Feed Speed

3 m/min.

Cutter Block Diam

63 mm, 3 knives

Cutter Block Speed

5500 rpm

Planer Table Length

1000 mm

Thicknesser Table Length

600 mm

Fence Tilt

45° - 90°

GW/NW

245/210 kg

Packing Size

132x57x97 cm

The given specification can be different from the available model or Buyer have to provide their own specs.

Standard Accessories:-

Electric Motor, V-Belts & Starter

Optional Accessories:-

Any Attachment not mentioned in standard accessories
